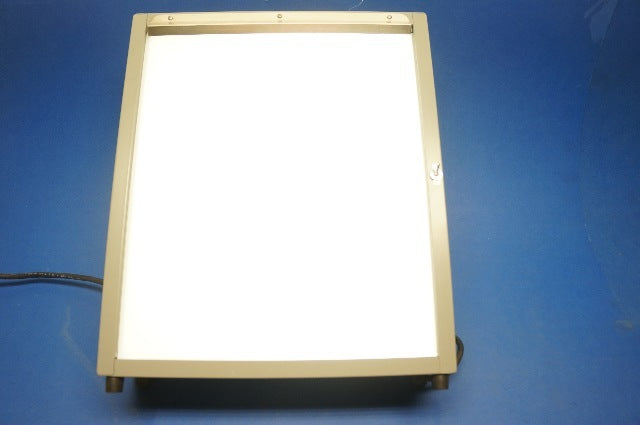

Brenner F1-0212 Illuminator X-Ray Film Fluorescent 115v-60hz AC

Brenner F1-0212 Illuminator X-Ray Film Fluorescent 115v-60hz AC


Mounting type: table or wall

Current type: ac

Lamp quantity: 4

Lamp wattage rating in watts: 15.0

Lamp bulb shape style: a19 tubular, t

Lamp bulb size designator: t-8

Lamp candlepower rating in footcandles: not rated

Lamp industry number: f15t8/d

Current rating in amps: not rated

Unit type: single

Viewing unit window material: plastic

Viewing unit overall height: 17.000 inches nominal

Viewing unit overall width: 14.000 inches nominal

Film attachment method: full width ball grips

Iii part name assigned by controlling agency: illuminator x-ray film fluorescent 115v-60hz ac

Voltage in volts: 115.0

Special features: includes 50 hz operation

Lamp base style: b16b medium bipin t-8

Lamp voltage rating in volts: 115.0

Lamp transparency: frosted

Emitted light characteristic: daylight

Lampholder quantity: 4

Structural form: rigid

Viewing unit center light transmission rating in foot-lamberts: not rated

Drip tray: included

Frequency in hertz: 60.0
