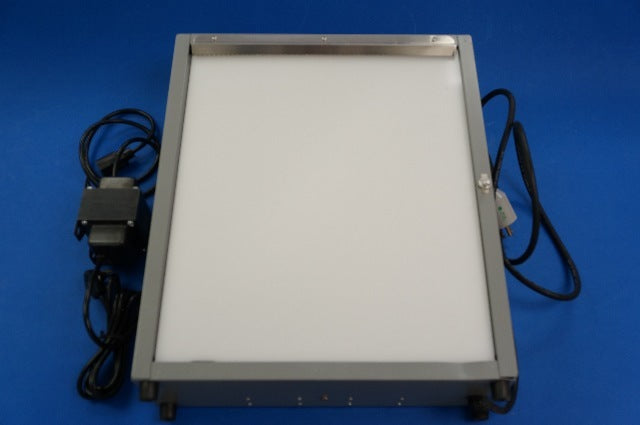

Brenner Metal FI-0212 X-RAY Film Illuminator

Brenner Metal FI-0212 X-RAY Film Illuminator


Mounting type: table or wall

Current type: ac

Lamp quantity: 4

Lamp wattage rating in watts: 15.0

Lamp base style: b16b medium bipin t-8

Lamp candlepower rating in footcandles: not rated

Lamp voltage rating in volts: 115.0

Lamp industry number: f15t8/d

Emitted light characteristic: daylight

Lampholder quantity: 4

Structural form: rigid

Current rating in amps: not rated

Viewing unit overall height: 17.000 inches nominal

Viewing unit overall width: 14.000 inches nominal

Viewing unit center light transmission rating in foot-lamberts: not rated

Drip tray: included

Iii part name assigned by controlling agency: illuminator xray film table or wall115v60hz style t-8 med bipin

Voltage in volts: 115.0

Frequency in hertz: 60.0

Lamp bulb shape style: a19 tubular, t

Lamp bulb size designator: t-8

Lamp transparency: frosted

Unit type: single

Viewing unit window material: plastic

Film attachment method: full width ball grips

Special features: includes 50 hz operation
