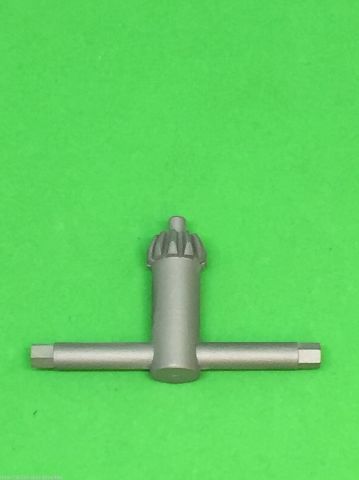

3037-10-27 Key Drill Chuck

3037-10-27 Key Drill Chuck

 NSN NUMBER - 6515003123530

Special features: hexagon handle w/one end designed to drive no. 10 socket head cap screw; replacement key for hand bone drill

Wrenching surface size: any acceptable single end

Iii intermediate package quantity: 12

Style designator: 113 fixed t-handle

Iii unit of issue cube: 0.003 cubic feet

Iii exterior container quantity: 576

Material: steel comp 1119 or steel comp 1144 or steel comp 8640 or steel comp 8650 overall

Wrenching surface shape: hexagon second end external hexagon third end external

Iii part name assigned by controlling agency: key drill chuck 1.125-1.688"lg spline sgl end external drive end

Drive surface size: 0.000 inches minimum and 0.156 inches maximum single end

Overall length: 1.125 inches minimum and 1.688 inches maximum

Iii unit of issue weight: 0.06 pounds

Iii exterior container cubic measure: 7.80 cubic feet

Drive end shape: spline single end external

Iii exterior container weight: 120.00 pounds
